Katalogtext
STABSTAHL

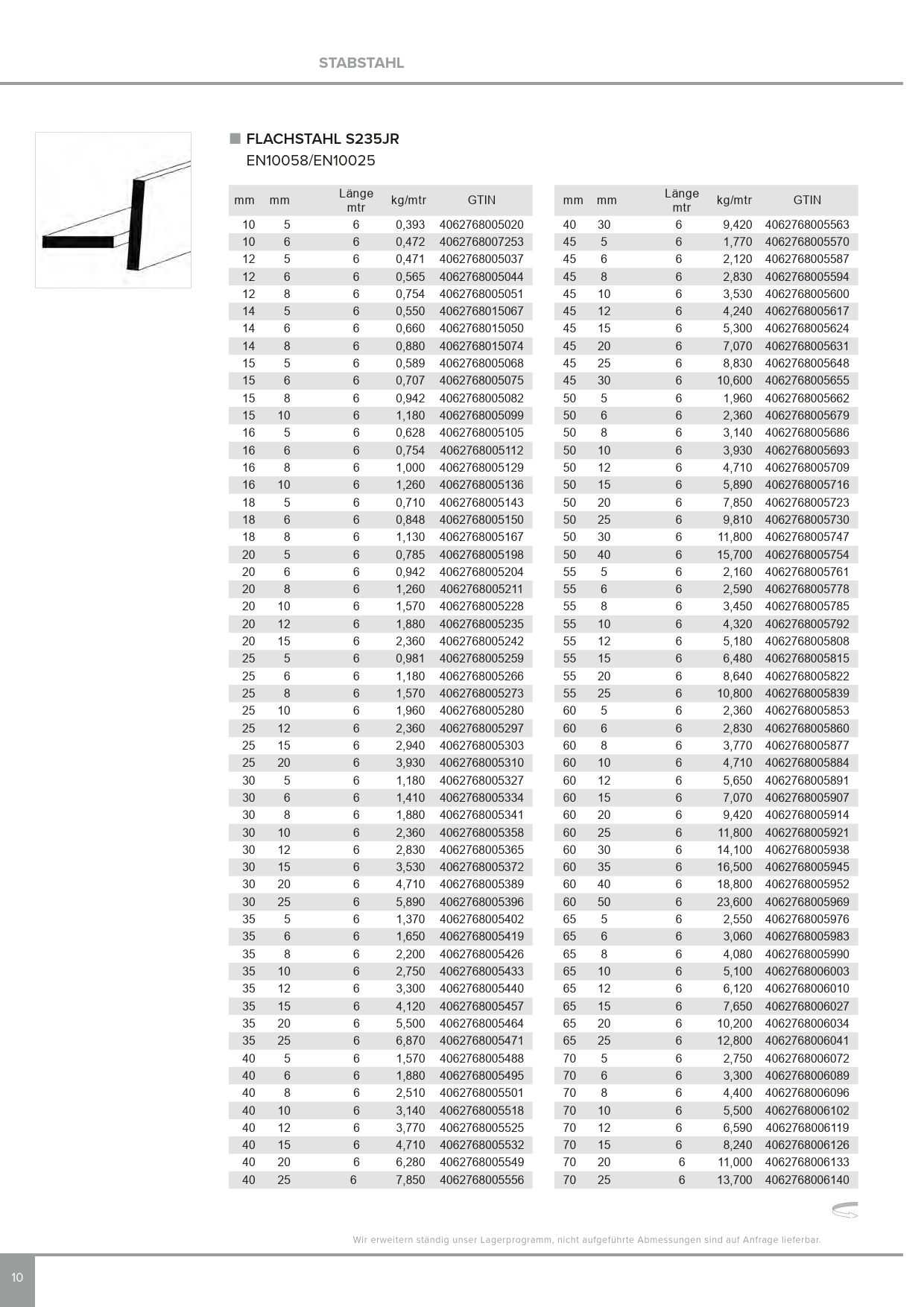

FLACHSTAHL S235JR
EN10058/EN10025
mm mm Länge kg/mtr GTIN mm mm Länge kg/mtr GTIN
mtr mtr
10 5 6 0,393 4062768005020 40 30 6 9,420 4062768005563
10 6 6 0,472 4062768007253 45 5 6 1,770 4062768005570
12 5 6 0,471 4062768005037 45 6 6 2,120 4062768005587
12 6 6 0,565 4062768005044 45 8 6 2,830 4062768005594
12 8 6 0,754 4062768005051 45 10 6 3,530 4062768005600
14 5 6 0,550 4062768015067 45 12 6 4,240 4062768005617
14 6 6 0,660 4062768015050 45 15 6 5,300 4062768005624
14 8 6 0,880 4062768015074 45 20 6 7,070 4062768005631
15 5 6 0,589 4062768005068 45 25 6 8,830 4062768005648
15 6 6 0,707 4062768005075 45 30 6 10,600 4062768005655
15 8 6 0,942 4062768005082 50 5 6 1,960 4062768005662
15 10 6 1,180 4062768005099 50 6 6 2,360 4062768005679
16 5 6 0,628 4062768005105 50 8 6 3,140 4062768005686
16 6 6 0,754 4062768005112 50 10 6 3,930 4062768005693
16 8 6 1,000 4062768005129 50 12 6 4,710 4062768005709
16 10 6 1,260 4062768005136 50 15 6 5,890 4062768005716
18 5 6 0,710 4062768005143 50 20 6 7,850 4062768005723
18 6 6 0,848 4062768005150 50 25 6 9,810 4062768005730
18 8 6 1,130 4062768005167 50 30 6 11,800 4062768005747
20 5 6 0,785 4062768005198 50 40 6 15,700 4062768005754
20 6 6 0,942 4062768005204 55 5 6 2,160 4062768005761
20 8 6 1,260 4062768005211 55 6 6 2,590 4062768005778
20 10 6 1,570 4062768005228 55 8 6 3,450 4062768005785
20 12 6 1,880 4062768005235 55 10 6 4,320 4062768005792
20 15 6 2,360 4062768005242 55 12 6 5,180 4062768005808
25 5 6 0,981 4062768005259 55 15 6 6,480 4062768005815
25 6 6 1,180 4062768005266 55 20 6 8,640 4062768005822
25 8 6 1,570 4062768005273 55 25 6 10,800 4062768005839
25 10 6 1,960 4062768005280 60 5 6 2,360 4062768005853
25 12 6 2,360 4062768005297 60 6 6 2,830 4062768005860
25 15 6 2,940 4062768005303 60 8 6 3,770 4062768005877
25 20 6 3,930 4062768005310 60 10 6 4,710 4062768005884
30 5 6 1,180 4062768005327 60 12 6 5,650 4062768005891
30 6 6 1,410 4062768005334 60 15 6 7,070 4062768005907
30 8 6 1,880 4062768005341 60 20 6 9,420 4062768005914
30 10 6 2,360 4062768005358 60 25 6 11,800 4062768005921
30 12 6 2,830 4062768005365 60 30 6 14,100 4062768005938
30 15 6 3,530 4062768005372 60 35 6 16,500 4062768005945
30 20 6 4,710 4062768005389 60 40 6 18,800 4062768005952
30 25 6 5,890 4062768005396 60 50 6 23,600 4062768005969
35 5 6 1,370 4062768005402 65 5 6 2,550 4062768005976
35 6 6 1,650 4062768005419 65 6 6 3,060 4062768005983
35 8 6 2,200 4062768005426 65 8 6 4,080 4062768005990
35 10 6 2,750 4062768005433 65 10 6 5,100 4062768006003
35 12 6 3,300 4062768005440 65 12 6 6,120 4062768006010
35 15 6 4,120 4062768005457 65 15 6 7,650 4062768006027
35 20 6 5,500 4062768005464 65 20 6 10,200 4062768006034
35 25 6 6,870 4062768005471 65 25 6 12,800 4062768006041
40 5 6 1,570 4062768005488 70 5 6 2,750 4062768006072
40 6 6 1,880 4062768005495 70 6 6 3,300 4062768006089
40 8 6 2,510 4062768005501 70 8 6 4,400 4062768006096
40 10 6 3,140 4062768005518 70 10 6 5,500 4062768006102
40 12 6 3,770 4062768005525 70 12 6 6,590 4062768006119
40 15 6 4,710 4062768005532 70 15 6 8,240 4062768006126
40 20 6 6,280 4062768005549 70 20 6 11,000 4062768006133
40 25 6 7,850 4062768005556 70 25 6 13,700 4062768006140
Wir erweitern ständig unser Lagerprogramm, nicht aufgeführte Abmessungen sind auf Anfrage lieferbar.
