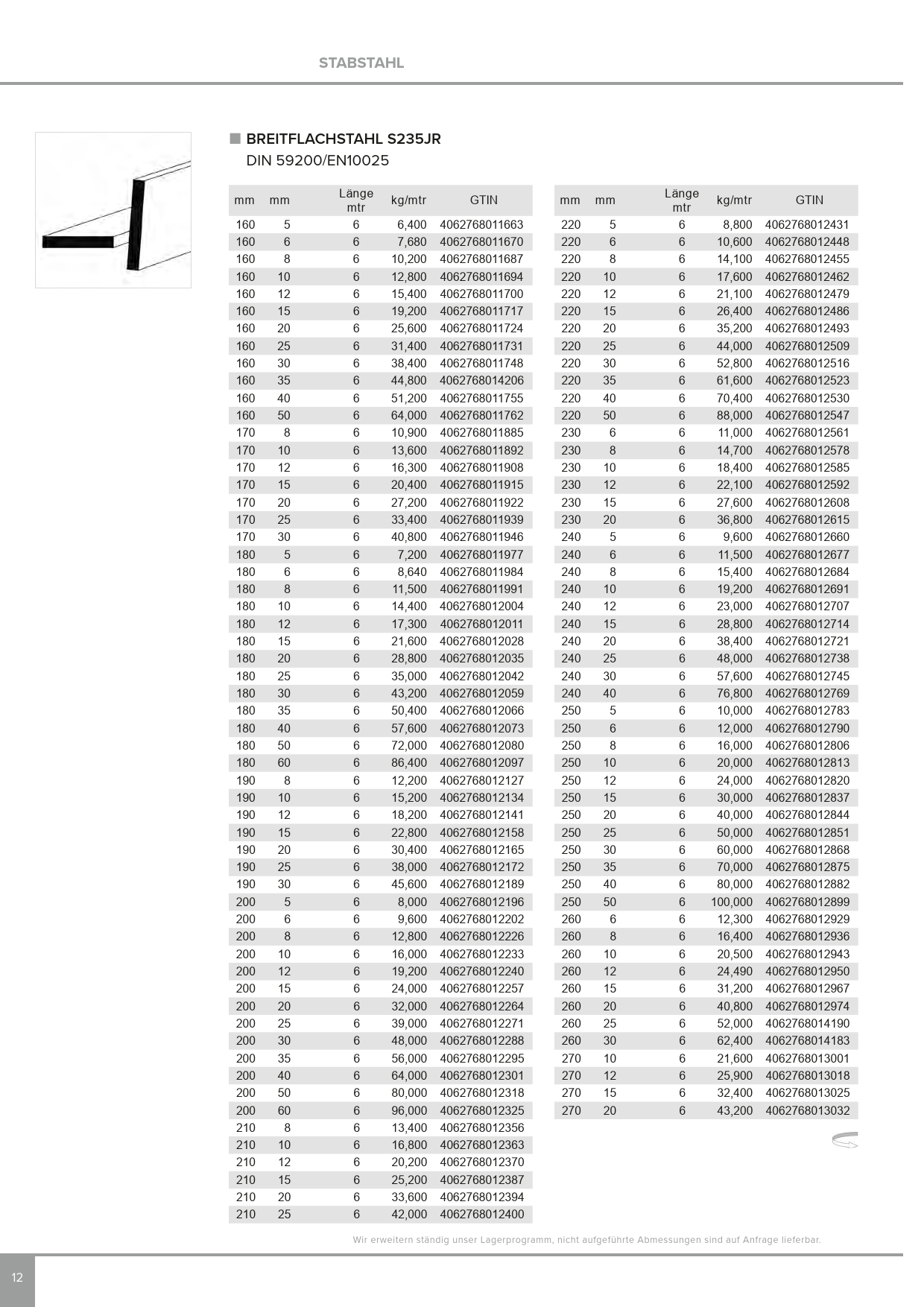

Katalogtext
STABSTAHL
BREITFLACHSTAHL S235JR
DIN 59200/EN10025
mm mm Länge kg/mtr GTIN mm mm Länge kg/mtr GTIN
mtr mtr
160 5 6 6,400 4062768011663 220 5 6 8,800 4062768012431
160 6 6 7,680 4062768011670 220 6 6 10,600 4062768012448
160 8 6 10,200 4062768011687 220 8 6 14,100 4062768012455
160 10 6 12,800 4062768011694 220 10 6 17,600 4062768012462
160 12 6 15,400 4062768011700 220 12 6 21,100 4062768012479
160 15 6 19,200 4062768011717 220 15 6 26,400 4062768012486
160 20 6 25,600 4062768011724 220 20 6 35,200 4062768012493
160 25 6 31,400 4062768011731 220 25 6 44,000 4062768012509
160 30 6 38,400 4062768011748 220 30 6 52,800 4062768012516
160 35 6 44,800 4062768014206 220 35 6 61,600 4062768012523
160 40 6 51,200 4062768011755 220 40 6 70,400 4062768012530
160 50 6 64,000 4062768011762 220 50 6 88,000 4062768012547
170 8 6 10,900 4062768011885 230 6 6 11,000 4062768012561
170 10 6 13,600 4062768011892 230 8 6 14,700 4062768012578
170 12 6 16,300 4062768011908 230 10 6 18,400 4062768012585
170 15 6 20,400 4062768011915 230 12 6 22,100 4062768012592
170 20 6 27,200 4062768011922 230 15 6 27,600 4062768012608
170 25 6 33,400 4062768011939 230 20 6 36,800 4062768012615
170 30 6 40,800 4062768011946 240 5 6 4062768012660
180 5 6 7,200 4062768011977 240 6 6 9,600 4062768012677
180 6 6 8,640 4062768011984 240 8 6 11,500 4062768012684
180 8 6 11,500 4062768011991 240 10 6 15,400 4062768012691
180 10 6 14,400 4062768012004 240 12 6 19,200 4062768012707
180 12 6 17,300 4062768012011 240 15 6 23,000 4062768012714
180 15 6 21,600 4062768012028 240 20 6 28,800 4062768012721
180 20 6 28,800 4062768012035 240 25 6 38,400 4062768012738
180 25 6 35,000 4062768012042 240 30 6 48,000 4062768012745
180 30 6 43,200 4062768012059 240 40 6 57,600 4062768012769
180 35 6 50,400 4062768012066 250 5 6 76,800 4062768012783
180 40 6 57,600 4062768012073 250 6 6 10,000 4062768012790
180 50 6 72,000 4062768012080 250 8 6 12,000 4062768012806
180 60 6 86,400 4062768012097 250 10 6 16,000 4062768012813
190 8 6 12,200 4062768012127 250 12 6 20,000 4062768012820
190 10 6 15,200 4062768012134 250 15 6 24,000 4062768012837
190 12 6 18,200 4062768012141 250 20 6 30,000 4062768012844
190 15 6 22,800 4062768012158 250 25 6 40,000 4062768012851
190 20 6 30,400 4062768012165 250 30 6 50,000 4062768012868
190 25 6 38,000 4062768012172 250 35 6 60,000 4062768012875
190 30 6 45,600 4062768012189 250 40 6 70,000 4062768012882
200 5 6 8,000 4062768012196 250 50 6 80,000 4062768012899
200 6 6 9,600 4062768012202 260 6 6 100,000 4062768012929
200 8 6 12,800 4062768012226 260 8 6 12,300 4062768012936
200 10 6 16,000 4062768012233 260 10 6 16,400 4062768012943
200 12 6 19,200 4062768012240 260 12 6 20,500 4062768012950
200 15 6 24,000 4062768012257 260 15 6 24,490 4062768012967
200 20 6 32,000 4062768012264 260 20 6 31,200 4062768012974
200 25 6 39,000 4062768012271 260 25 6 40,800 4062768014190
200 30 6 48,000 4062768012288 260 30 6 52,000 4062768014183
200 35 6 56,000 4062768012295 270 10 6 62,400 4062768013001
200 40 6 64,000 4062768012301 270 12 6 21,600 4062768013018
200 50 6 80,000 4062768012318 270 15 6 25,900 4062768013025
200 60 6 96,000 4062768012325 270 20 6 32,400 4062768013032
210 8 6 13,400 4062768012356 43,200
210 10 6 16,800 4062768012363
210 12 6 20,200 4062768012370
210 15 6 25,200 4062768012387
210 20 6 33,600 4062768012394
210 25 6 42,000 4062768012400
Wir erweitern ständig unser Lagerprogramm, nicht aufgeführte Abmessungen sind auf Anfrage lieferbar.
12
