Katalogtext
STABSTAHL

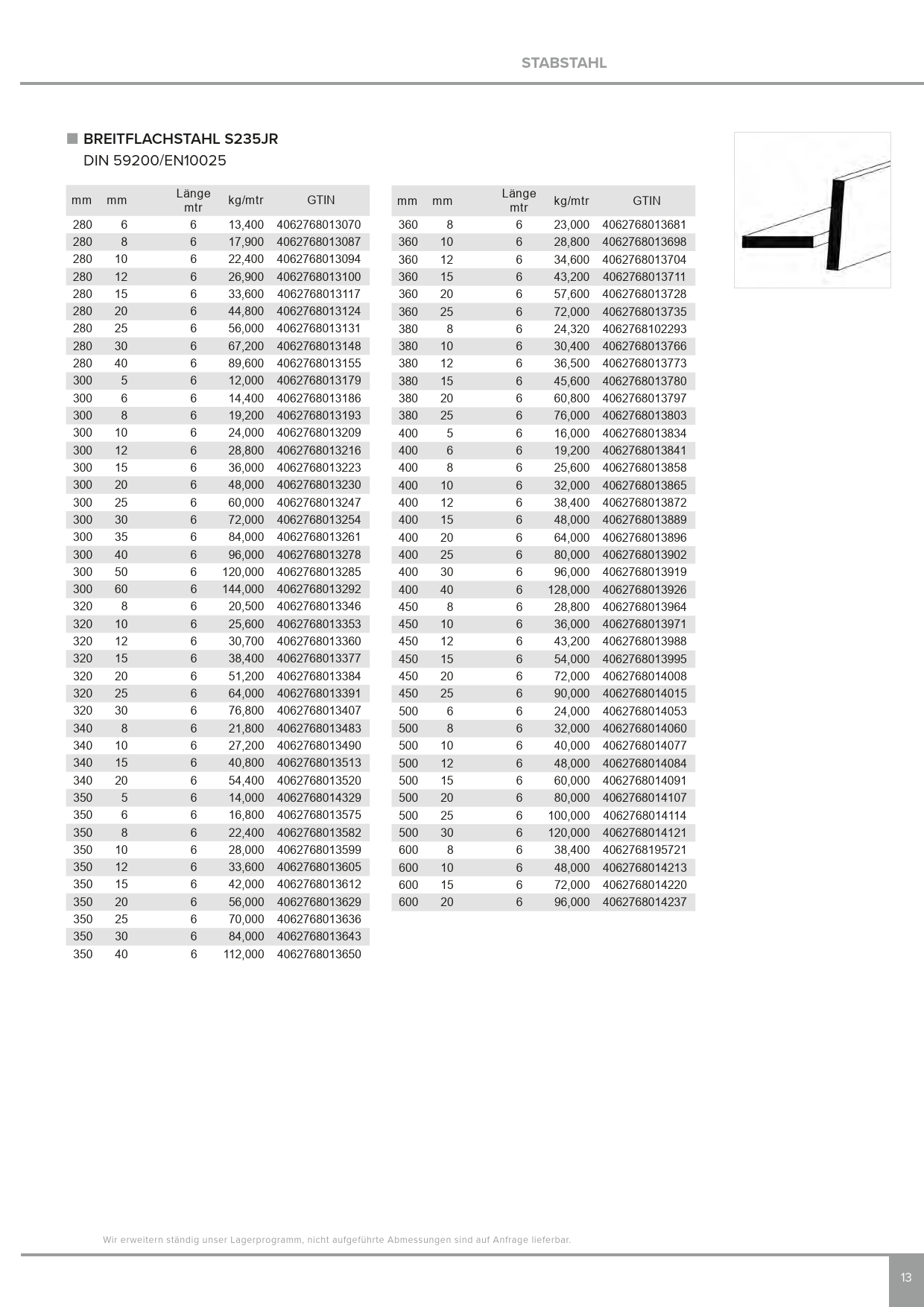

BREITFLACHSTAHL S235JR
DIN 59200/EN10025
mm mm Länge kg/mtr GTIN mm mm Länge kg/mtr GTIN
mtr mtr
280 6 6 13,400 4062768013070 360 8 6 23,000 4062768013681
280 8 6 17,900 4062768013087 360 10 6 28,800 4062768013698
280 10 6 22,400 4062768013094 360 12 6 34,600 4062768013704
280 12 6 26,900 4062768013100 360 15 6 43,200 4062768013711
280 15 6 33,600 4062768013117 360 20 6 57,600 4062768013728
280 20 6 44,800 4062768013124 360 25 6 72,000 4062768013735
280 25 6 56,000 4062768013131 380 8 6 24,320 4062768102293
280 30 6 67,200 4062768013148 380 10 6 30,400 4062768013766
280 40 6 89,600 4062768013155 380 12 6 36,500 4062768013773
300 5 6 12,000 4062768013179 380 15 6 45,600 4062768013780
300 6 6 14,400 4062768013186 380 20 6 60,800 4062768013797
300 8 6 19,200 4062768013193 380 25 6 76,000 4062768013803
300 10 6 24,000 4062768013209 400 5 6 16,000 4062768013834
300 12 6 28,800 4062768013216 400 6 6 19,200 4062768013841
300 15 6 36,000 4062768013223 400 8 6 25,600 4062768013858
300 20 6 48,000 4062768013230 400 10 6 32,000 4062768013865
300 25 6 60,000 4062768013247 400 12 6 38,400 4062768013872
300 30 6 72,000 4062768013254 400 15 6 48,000 4062768013889
300 35 6 84,000 4062768013261 400 20 6 64,000 4062768013896
300 40 6 96,000 4062768013278 400 25 6 80,000 4062768013902
300 50 6 120,000 4062768013285 400 30 6 96,000 4062768013919
300 60 6 144,000 4062768013292 400 40 6 128,000 4062768013926
320 8 6 20,500 4062768013346 450 8 6 28,800 4062768013964
320 10 6 25,600 4062768013353 450 10 6 36,000 4062768013971
320 12 6 30,700 4062768013360 450 12 6 43,200 4062768013988
320 15 6 38,400 4062768013377 450 15 6 54,000 4062768013995
320 20 6 51,200 4062768013384 450 20 6 72,000 4062768014008
320 25 6 64,000 4062768013391 450 25 6 90,000 4062768014015
320 30 6 76,800 4062768013407 500 6 6 24,000 4062768014053
340 8 6 21,800 4062768013483 500 8 6 32,000 4062768014060
340 10 6 27,200 4062768013490 500 10 6 40,000 4062768014077
340 15 6 40,800 4062768013513 500 12 6 48,000 4062768014084
340 20 6 54,400 4062768013520 500 15 6 60,000 4062768014091
350 5 6 14,000 4062768014329 500 20 6 80,000 4062768014107
350 6 6 16,800 4062768013575 500 25 6 100,000 4062768014114
350 8 6 22,400 4062768013582 500 30 6 120,000 4062768014121
350 10 6 28,000 4062768013599 600 8 6 38,400 4062768195721
350 12 6 33,600 4062768013605 600 10 6 48,000 4062768014213
350 15 6 42,000 4062768013612 600 15 6 72,000 4062768014220
350 20 6 56,000 4062768013629 600 20 6 96,000 4062768014237
350 25 6 70,000 4062768013636
350 30 6 84,000 4062768013643
350 40 6 112,000 4062768013650
Wir erweitern ständig unser Lagerprogramm, nicht aufgeführte Abmessungen sind auf Anfrage lieferbar.
