Katalogtext
STABSTAHL

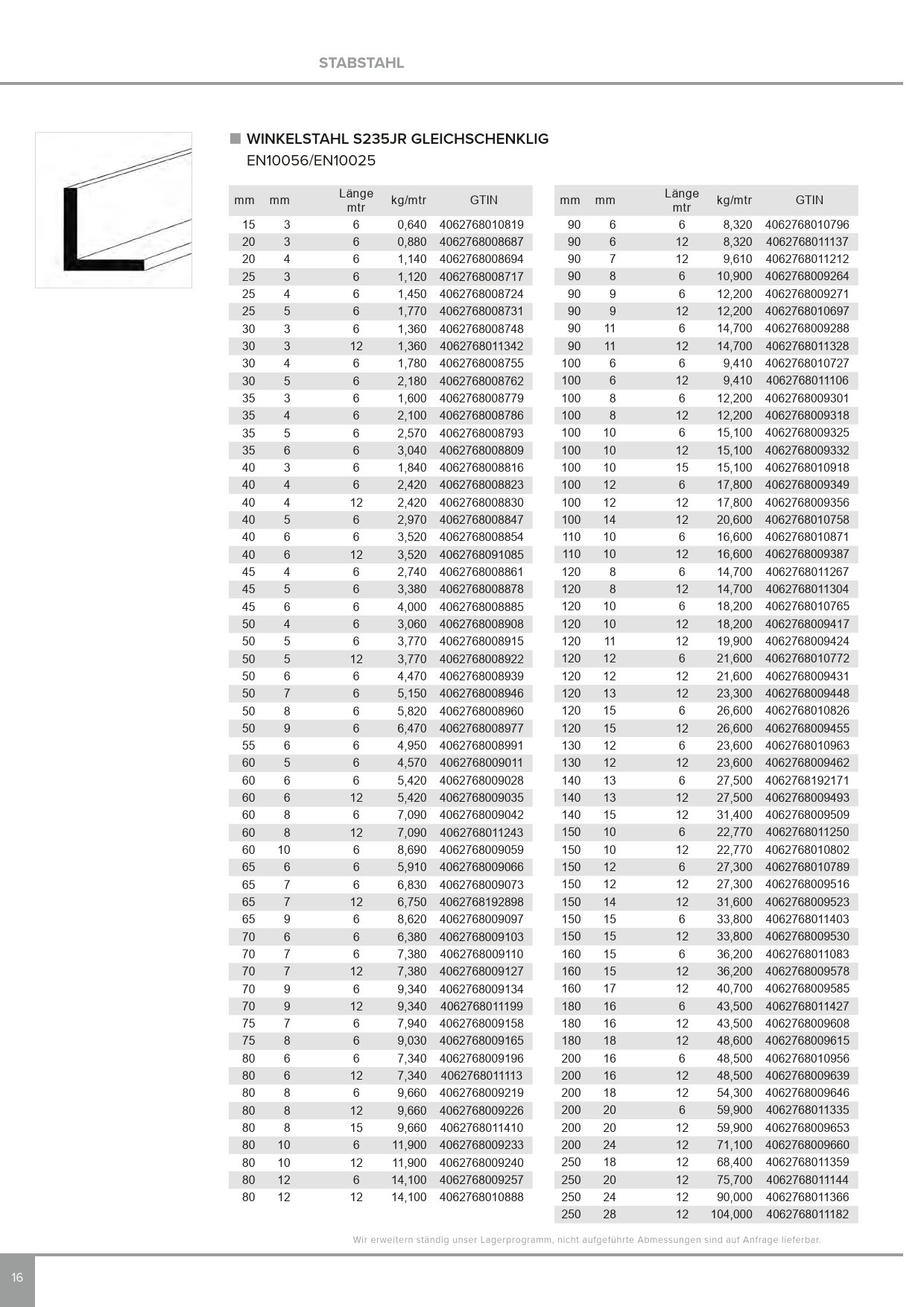

WINKELSTAHL S235JR GLEICHSCHENKLIG
EN10056/EN10025
mm mm Länge kg/mtr GTIN mm mm Länge kg/mtr GTIN
mtr mtr
15 3 6 0,640 4062768010819 90 6 6 8,320 4062768010796
20 3 6 0,880 4062768008687 90 6 12 8,320 4062768011137
20 4 6 1,140 4062768008694 90 7 12 9,610 4062768011212
25 3 6 1,120 4062768008717 90 8 6 10,900 4062768009264
25 4 6 1,450 4062768008724 90 9 6 12,200 4062768009271
25 5 6 1,770 4062768008731 90 9 12 12,200 4062768010697
30 3 6 1,360 4062768008748 90 11 6 14,700 4062768009288
30 3 12 1,360 4062768011342 90 11 12 14,700 4062768011328
30 4 6 1,780 4062768008755 100 6 6 9,410 4062768010727
30 5 6 2,180 4062768008762 100 6 12 9,410 4062768011106
35 3 6 1,600 4062768008779 100 8 6 12,200 4062768009301
35 4 6 2,100 4062768008786 100 8 12 12,200 4062768009318
35 5 6 2,570 4062768008793 100 10 6 15,100 4062768009325
35 6 6 3,040 4062768008809 100 10 12 15,100 4062768009332
40 3 6 1,840 4062768008816 100 10 15 15,100 4062768010918
40 4 6 2,420 4062768008823 100 12 6 17,800 4062768009349
40 4 12 2,420 4062768008830 100 12 12 17,800 4062768009356
40 5 6 2,970 4062768008847 100 14 12 20,600 4062768010758
40 6 6 3,520 4062768008854 110 10 6 16,600 4062768010871
40 6 12 3,520 4062768091085 110 10 12 16,600 4062768009387
45 4 6 2,740 4062768008861 120 8 6 14,700 4062768011267
45 5 6 3,380 4062768008878 120 8 12 14,700 4062768011304
45 6 6 4,000 4062768008885 120 10 6 18,200 4062768010765
50 4 6 3,060 4062768008908 120 10 12 18,200 4062768009417
50 5 6 3,770 4062768008915 120 11 12 19,900 4062768009424
50 5 12 3,770 4062768008922 120 12 6 21,600 4062768010772
50 6 6 4,470 4062768008939 120 12 12 21,600 4062768009431
50 7 6 5,150 4062768008946 120 13 12 23,300 4062768009448
50 8 6 5,820 4062768008960 120 15 6 26,600 4062768010826
50 9 6 6,470 4062768008977 120 15 12 26,600 4062768009455
55 6 6 4,950 4062768008991 130 12 6 23,600 4062768010963
60 5 6 4,570 4062768009011 130 12 12 23,600 4062768009462
60 6 6 5,420 4062768009028 140 13 6 27,500 4062768192171
60 6 12 5,420 4062768009035 140 13 12 27,500 4062768009493
60 8 6 7,090 4062768009042 140 15 12 31,400 4062768009509
60 8 12 7,090 4062768011243 150 10 6 22,770 4062768011250
60 10 6 8,690 4062768009059 150 10 12 22,770 4062768010802
65 6 6 5,910 4062768009066 150 12 6 27,300 4062768010789
65 7 6 6,830 4062768009073 150 12 12 27,300 4062768009516
65 7 12 6,750 4062768192898 150 14 12 31,600 4062768009523
65 9 6 8,620 4062768009097 150 15 6 33,800 4062768011403
70 6 6 6,380 4062768009103 150 15 12 33,800 4062768009530
70 7 6 7,380 4062768009110 160 15 6 36,200 4062768011083
70 7 12 7,380 4062768009127 160 15 12 36,200 4062768009578
70 9 6 9,340 4062768009134 160 17 12 40,700 4062768009585
70 9 12 9,340 4062768011199 180 16 6 43,500 4062768011427
75 7 6 7,940 4062768009158 180 16 12 43,500 4062768009608
75 8 6 9,030 4062768009165 180 18 12 48,600 4062768009615
80 6 6 7,340 4062768009196 200 16 6 48,500 4062768010956
80 6 12 7,340 4062768011113 200 16 12 48,500 4062768009639
80 8 6 9,660 4062768009219 200 18 12 54,300 4062768009646
80 8 12 9,660 4062768009226 200 20 6 59,900 4062768011335
80 8 15 9,660 4062768011410 200 20 12 59,900 4062768009653
80 10 6 11,900 4062768009233 200 24 12 71,100 4062768009660
80 10 12 11,900 4062768009240 250 18 12 68,400 4062768011359
80 12 6 14,100 4062768009257 250 20 12 75,700 4062768011144
80 12 12 14,100 4062768010888 250 24 12 90,000 4062768011366
250 28 12 104,000 4062768011182
Wir erweitern ständig unser Lagerprogramm, nicht aufgeführte Abmessungen sind auf Anfrage lieferbar.
16
