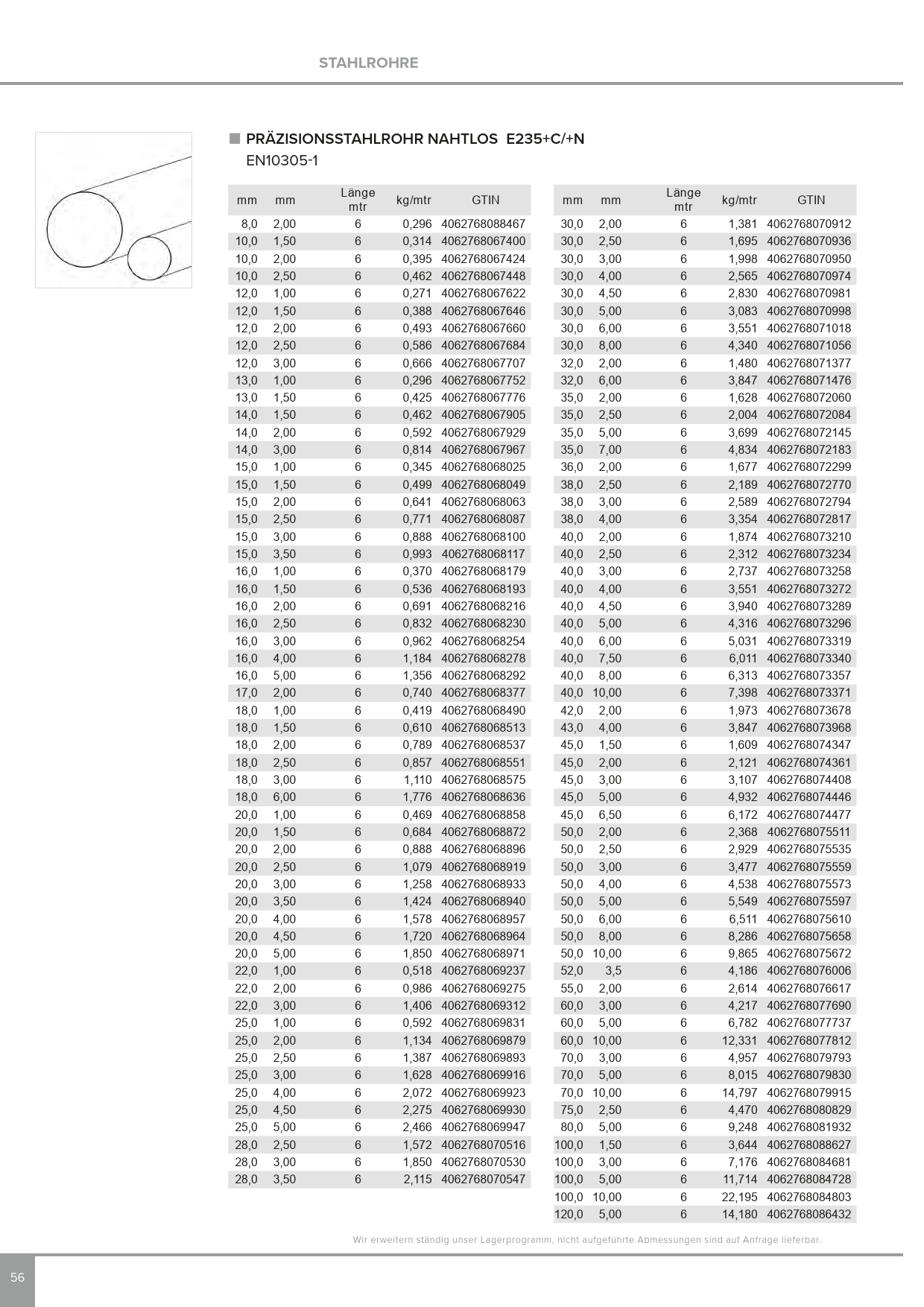

Katalogtext
STAHLROHRE
PRÄZISIONSSTAHLROHR NAHTLOS E235+C/+N
EN10305-1
mm mm Länge kg/mtr GTIN mm mm Länge kg/mtr GTIN
mtr mtr
8,0 2,00 6 0,296 4062768088467 30,0 2,00 6 1,381 4062768070912
10,0 1,50 6 0,314 4062768067400 30,0 2,50 6 1,695 4062768070936
10,0 2,00 6 0,395 4062768067424 30,0 3,00 6 1,998 4062768070950
10,0 2,50 6 0,462 4062768067448 30,0 4,00 6 2,565 4062768070974
12,0 1,00 6 0,271 4062768067622 30,0 4,50 6 2,830 4062768070981
12,0 1,50 6 0,388 4062768067646 30,0 5,00 6 3,083 4062768070998
12,0 2,00 6 0,493 4062768067660 30,0 6,00 6 3,551 4062768071018
12,0 2,50 6 0,586 4062768067684 30,0 8,00 6 4,340 4062768071056
12,0 3,00 6 0,666 4062768067707 32,0 2,00 6 1,480 4062768071377
13,0 1,00 6 0,296 4062768067752 32,0 6,00 6 3,847 4062768071476
13,0 1,50 6 0,425 4062768067776 35,0 2,00 6 1,628 4062768072060
14,0 1,50 6 0,462 4062768067905 35,0 2,50 6 2,004 4062768072084
14,0 2,00 6 0,592 4062768067929 35,0 5,00 6 3,699 4062768072145
14,0 3,00 6 0,814 4062768067967 35,0 7,00 6 4,834 4062768072183
15,0 1,00 6 0,345 4062768068025 36,0 2,00 6 1,677 4062768072299
15,0 1,50 6 0,499 4062768068049 38,0 2,50 6 2,189 4062768072770
15,0 2,00 6 0,641 4062768068063 38,0 3,00 6 2,589 4062768072794
15,0 2,50 6 0,771 4062768068087 38,0 4,00 6 3,354 4062768072817
15,0 3,00 6 0,888 4062768068100 40,0 2,00 6 1,874 4062768073210
15,0 3,50 6 0,993 4062768068117 40,0 2,50 6 2,312 4062768073234
16,0 1,00 6 0,370 4062768068179 40,0 3,00 6 2,737 4062768073258
16,0 1,50 6 0,536 4062768068193 40,0 4,00 6 3,551 4062768073272
16,0 2,00 6 0,691 4062768068216 40,0 4,50 6 3,940 4062768073289
16,0 2,50 6 0,832 4062768068230 40,0 5,00 6 4,316 4062768073296
16,0 3,00 6 0,962 4062768068254 40,0 6,00 6 5,031 4062768073319
16,0 4,00 6 1,184 4062768068278 40,0 7,50 6 6,011 4062768073340
16,0 5,00 6 1,356 4062768068292 40,0 8,00 6 6,313 4062768073357
17,0 2,00 6 0,740 4062768068377 40,0 10,00 6 7,398 4062768073371
18,0 1,00 6 0,419 4062768068490 42,0 2,00 6 1,973 4062768073678
18,0 1,50 6 0,610 4062768068513 43,0 4,00 6 3,847 4062768073968
18,0 2,00 6 0,789 4062768068537 45,0 1,50 6 1,609 4062768074347
18,0 2,50 6 0,857 4062768068551 45,0 2,00 6 2,121 4062768074361
18,0 3,00 6 1,110 4062768068575 45,0 3,00 6 3,107 4062768074408
18,0 6,00 6 1,776 4062768068636 45,0 5,00 6 4,932 4062768074446
20,0 1,00 6 0,469 4062768068858 45,0 6,50 6 6,172 4062768074477
20,0 1,50 6 0,684 4062768068872 50,0 2,00 6 2,368 4062768075511
20,0 2,00 6 0,888 4062768068896 50,0 2,50 6 2,929 4062768075535
20,0 2,50 6 1,079 4062768068919 50,0 3,00 6 3,477 4062768075559
20,0 3,00 6 1,258 4062768068933 50,0 4,00 6 4,538 4062768075573
20,0 3,50 6 1,424 4062768068940 50,0 5,00 6 5,549 4062768075597
20,0 4,00 6 1,578 4062768068957 50,0 6,00 6 6,511 4062768075610
20,0 4,50 6 1,720 4062768068964 50,0 8,00 6 8,286 4062768075658
20,0 5,00 6 1,850 4062768068971 50,0 10,00 6 9,865 4062768075672
22,0 1,00 6 0,518 4062768069237 52,0 6 4,186 4062768076006
22,0 2,00 6 0,986 4062768069275 55,0 3,5 6 2,614 4062768076617
22,0 3,00 6 1,406 4062768069312 60,0 2,00 6 4,217 4062768077690
25,0 1,00 6 0,592 4062768069831 60,0 3,00 6 6,782 4062768077737
25,0 2,00 6 1,134 4062768069879 60,0 5,00 6 12,331 4062768077812
25,0 2,50 6 1,387 4062768069893 70,0 10,00 6 4,957 4062768079793
25,0 3,00 6 1,628 4062768069916 70,0 3,00 6 8,015 4062768079830
25,0 4,00 6 2,072 4062768069923 70,0 5,00 6 14,797 4062768079915
25,0 4,50 6 2,275 4062768069930 75,0 10,00 6 4,470 4062768080829
25,0 5,00 6 2,466 4062768069947 80,0 2,50 6 9,248 4062768081932
28,0 2,50 6 1,572 4062768070516 100,0 5,00 6 3,644 4062768088627
28,0 3,00 6 1,850 4062768070530 100,0 1,50 6 7,176 4062768084681
28,0 3,50 6 2,115 4062768070547 100,0 3,00 6 11,714 4062768084728
100,0 5,00 6 22,195 4062768084803
120,0 10,00 6 14,180 4062768086432
5,00
Wir erweitern ständig unser Lagerprogramm, nicht aufgeführte Abmessungen sind auf Anfrage lieferbar.
