Katalogtext
QUALITÄTSSTAHL

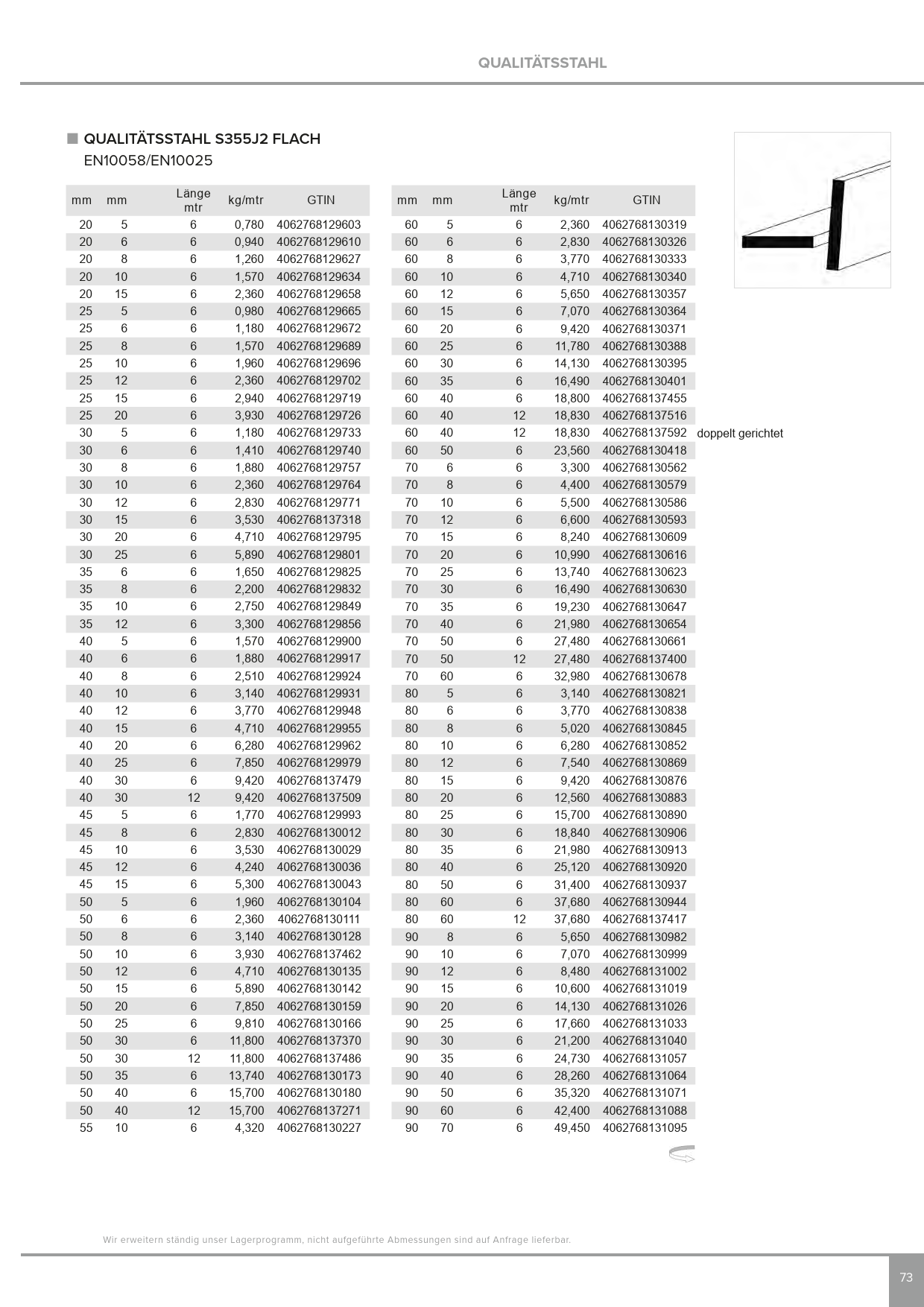

QUALITÄTSSTAHL S355J2 FLACH
EN10058/EN10025
mm mm Länge kg/mtr GTIN mm mm Länge kg/mtr GTIN
mtr mtr
20 5 6 0,780 4062768129603 60 5 6 2,360 4062768130319 doppelt gerichtet
20 6 6 0,940 4062768129610 60 6 6 2,830 4062768130326
20 8 6 1,260 4062768129627 60 8 6 3,770 4062768130333
20 10 6 1,570 4062768129634 60 10 6 4,710 4062768130340
20 15 6 2,360 4062768129658 60 12 6 5,650 4062768130357
25 5 6 0,980 4062768129665 60 15 6 7,070 4062768130364
25 6 6 1,180 4062768129672 60 20 6 9,420 4062768130371
25 8 6 1,570 4062768129689 60 25 6 11,780 4062768130388
25 10 6 1,960 4062768129696 60 30 6 14,130 4062768130395
25 12 6 2,360 4062768129702 60 35 6 16,490 4062768130401
25 15 6 2,940 4062768129719 60 40 6 18,800 4062768137455
25 20 6 3,930 4062768129726 60 40 12 18,830 4062768137516
30 5 6 1,180 4062768129733 60 40 12 18,830 4062768137592
30 6 6 1,410 4062768129740 60 50 6 23,560 4062768130418
30 8 6 1,880 4062768129757 70 6 6 3,300 4062768130562
30 10 6 2,360 4062768129764 70 8 6 4,400 4062768130579
30 12 6 2,830 4062768129771 70 10 6 5,500 4062768130586
30 15 6 3,530 4062768137318 70 12 6 6,600 4062768130593
30 20 6 4,710 4062768129795 70 15 6 8,240 4062768130609
30 25 6 5,890 4062768129801 70 20 6 10,990 4062768130616
35 6 6 1,650 4062768129825 70 25 6 13,740 4062768130623
35 8 6 2,200 4062768129832 70 30 6 16,490 4062768130630
35 10 6 2,750 4062768129849 70 35 6 19,230 4062768130647
35 12 6 3,300 4062768129856 70 40 6 21,980 4062768130654
40 5 6 1,570 4062768129900 70 50 6 27,480 4062768130661
40 6 6 1,880 4062768129917 70 50 12 27,480 4062768137400
40 8 6 2,510 4062768129924 70 60 6 32,980 4062768130678
40 10 6 3,140 4062768129931 80 5 6 3,140 4062768130821
40 12 6 3,770 4062768129948 80 6 6 3,770 4062768130838
40 15 6 4,710 4062768129955 80 8 6 5,020 4062768130845
40 20 6 6,280 4062768129962 80 10 6 6,280 4062768130852
40 25 6 7,850 4062768129979 80 12 6 7,540 4062768130869
40 30 6 9,420 4062768137479 80 15 6 9,420 4062768130876
40 30 12 9,420 4062768137509 80 20 6 12,560 4062768130883
45 5 6 1,770 4062768129993 80 25 6 15,700 4062768130890
45 8 6 2,830 4062768130012 80 30 6 18,840 4062768130906
45 10 6 3,530 4062768130029 80 35 6 21,980 4062768130913
45 12 6 4,240 4062768130036 80 40 6 25,120 4062768130920
45 15 6 5,300 4062768130043 80 50 6 31,400 4062768130937
50 5 6 1,960 4062768130104 80 60 6 37,680 4062768130944
50 6 6 2,360 4062768130111 80 60 12 37,680 4062768137417
50 8 6 3,140 4062768130128 90 8 6 5,650 4062768130982
50 10 6 3,930 4062768137462 90 10 6 7,070 4062768130999
50 12 6 4,710 4062768130135 90 12 6 8,480 4062768131002
50 15 6 5,890 4062768130142 90 15 6 10,600 4062768131019
50 20 6 7,850 4062768130159 90 20 6 14,130 4062768131026
50 25 6 9,810 4062768130166 90 25 6 17,660 4062768131033
50 30 6 11,800 4062768137370 90 30 6 21,200 4062768131040
50 30 12 11,800 4062768137486 90 35 6 24,730 4062768131057
50 35 6 13,740 4062768130173 90 40 6 28,260 4062768131064
50 40 6 15,700 4062768130180 90 50 6 35,320 4062768131071
50 40 12 15,700 4062768137271 90 60 6 42,400 4062768131088
55 10 6 4,320 4062768130227 90 70 6 49,450 4062768131095
Wir erweitern ständig unser Lagerprogramm, nicht aufgeführte Abmessungen sind auf Anfrage lieferbar.
