Katalogtext
BLANK- UND EDELBAUSTAHL

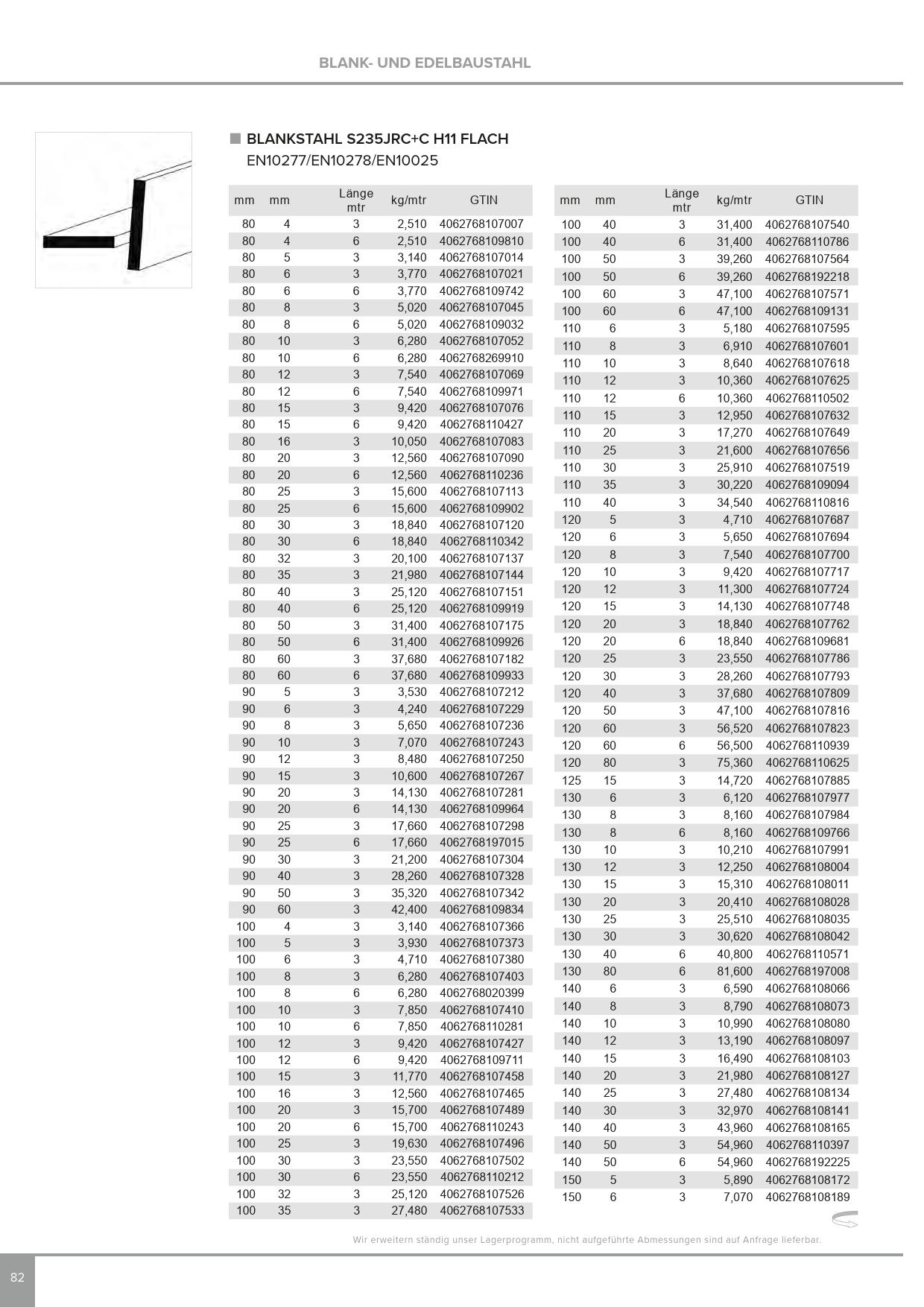

BLANKSTAHL S235JRC+C H11 FLACH
EN10277/EN10278/EN10025
mm mm Länge kg/mtr GTIN mm mm Länge kg/mtr GTIN
mtr mtr
80 4 3 2,510 4062768107007 100 40 3 31,400 4062768107540
80 4 6 2,510 4062768109810 100 40 6 31,400 4062768110786
80 5 3 3,140 4062768107014 100 50 3 39,260 4062768107564
80 6 3 3,770 4062768107021 100 50 6 39,260 4062768192218
80 6 6 3,770 4062768109742 100 60 3 47,100 4062768107571
80 8 3 5,020 4062768107045 100 60 6 47,100 4062768109131
80 8 6 5,020 4062768109032 110 6 3 4062768107595
80 10 3 6,280 4062768107052 110 8 3 5,180 4062768107601
80 10 6 6,280 4062768269910 110 10 3 6,910 4062768107618
80 12 3 7,540 4062768107069 110 12 3 8,640 4062768107625
80 12 6 7,540 4062768109971 110 12 6 10,360 4062768110502
80 15 3 9,420 4062768107076 110 15 3 10,360 4062768107632
80 15 6 9,420 4062768110427 110 20 3 12,950 4062768107649
80 16 3 10,050 4062768107083 110 25 3 17,270 4062768107656
80 20 3 12,560 4062768107090 110 30 3 21,600 4062768107519
80 20 6 12,560 4062768110236 110 35 3 25,910 4062768109094
80 25 3 15,600 4062768107113 110 40 3 30,220 4062768110816
80 25 6 15,600 4062768109902 120 5 3 34,540 4062768107687
80 30 3 18,840 4062768107120 120 6 3 4,710 4062768107694
80 30 6 18,840 4062768110342 120 8 3 5,650 4062768107700
80 32 3 20,100 4062768107137 120 10 3 7,540 4062768107717
80 35 3 21,980 4062768107144 120 12 3 9,420 4062768107724
80 40 3 25,120 4062768107151 120 15 3 11,300 4062768107748
80 40 6 25,120 4062768109919 120 20 3 14,130 4062768107762
80 50 3 31,400 4062768107175 120 20 6 18,840 4062768109681
80 50 6 31,400 4062768109926 120 25 3 18,840 4062768107786
80 60 3 37,680 4062768107182 120 30 3 23,550 4062768107793
80 60 6 37,680 4062768109933 120 40 3 28,260 4062768107809
90 5 3 3,530 4062768107212 120 50 3 37,680 4062768107816
90 6 3 4,240 4062768107229 120 60 3 47,100 4062768107823
90 8 3 5,650 4062768107236 120 60 6 56,520 4062768110939
90 10 3 7,070 4062768107243 120 80 3 56,500 4062768110625
90 12 3 8,480 4062768107250 125 15 3 75,360 4062768107885
90 15 3 10,600 4062768107267 130 6 3 14,720 4062768107977
90 20 3 14,130 4062768107281 130 8 3 6,120 4062768107984
90 20 6 14,130 4062768109964 130 8 6 8,160 4062768109766
90 25 3 17,660 4062768107298 130 10 3 8,160 4062768107991
90 25 6 17,660 4062768197015 130 12 3 10,210 4062768108004
90 30 3 21,200 4062768107304 130 15 3 12,250 4062768108011
90 40 3 28,260 4062768107328 130 20 3 15,310 4062768108028
90 50 3 35,320 4062768107342 130 25 3 20,410 4062768108035
90 60 3 42,400 4062768109834 130 30 3 25,510 4062768108042
100 4 3 3,140 4062768107366 130 40 6 30,620 4062768110571
100 5 3 3,930 4062768107373 130 80 6 40,800 4062768197008
100 6 3 4,710 4062768107380 140 6 3 81,600 4062768108066
100 8 3 6,280 4062768107403 140 8 3 6,590 4062768108073
100 8 6 6,280 4062768020399 140 10 3 8,790 4062768108080
100 10 3 7,850 4062768107410 140 12 3 10,990 4062768108097
100 10 6 7,850 4062768110281 140 15 3 13,190 4062768108103
100 12 3 9,420 4062768107427 140 20 3 16,490 4062768108127
100 12 6 9,420 4062768109711 140 25 3 21,980 4062768108134
100 15 3 11,770 4062768107458 140 30 3 27,480 4062768108141
100 16 3 12,560 4062768107465 140 40 3 32,970 4062768108165
100 20 3 15,700 4062768107489 140 50 3 43,960 4062768110397
100 20 6 15,700 4062768110243 140 50 6 54,960 4062768192225
100 25 3 19,630 4062768107496 150 5 3 54,960 4062768108172
100 30 3 23,550 4062768107502 150 6 3 5,890 4062768108189
100 30 6 23,550 4062768110212 7,070
100 32 3 25,120 4062768107526
100 35 3 27,480 4062768107533
Wir erweitern ständig unser Lagerprogramm, nicht aufgeführte Abmessungen sind auf Anfrage lieferbar.
82
